[English] [LEGACY] Windows VPN Setup


PaXe

Recommended Posts

If you struggle with the setup, feel free to use  a support channel in our Discord!

We recommend not to use this connection method unless there is no other working option.


REQUIREMENTS

  • Game device (pc)
  • Radar device (second pc)


ON RADAR-PC

1.1. Download DefenderControl and disable Windows Defender with it.

1.2. Open CMD and type "ipconfig"

  • Take note of your IPv4 address
  • Take note of your default gateway.

1.3. Win + R and run “ncpa.cpl”

1.5. Right click your primary internet adapter and open Properties.

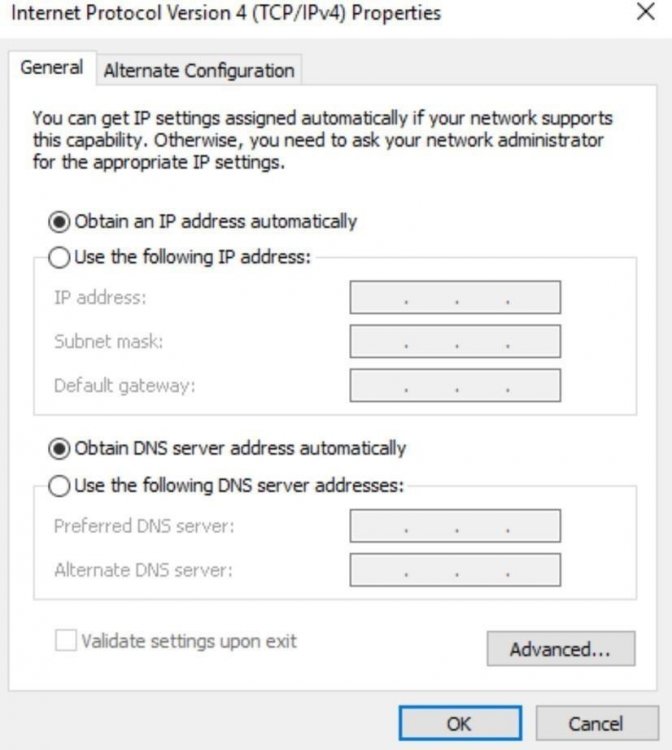

1.6. Select "Internet Protocol Version 4 (TCP/IPv4)" and open Properties

1.7. Use “Obtain an IP address automatically” and “Obtain DNS server address automatically”


  • Click “OK”
  • Make sure "Internet Protocol Version 6 (TCP/IPv6)" is not ticked.
  • Click OK then Close.

1.8. Go back to the "Network Connections Window" and press ALT once.





  • Click File -> Then click "New Incoming Connection".
  • Add someone (bottom left).
  • Enter username and password.
  • Click OK.
  • Then click Next.

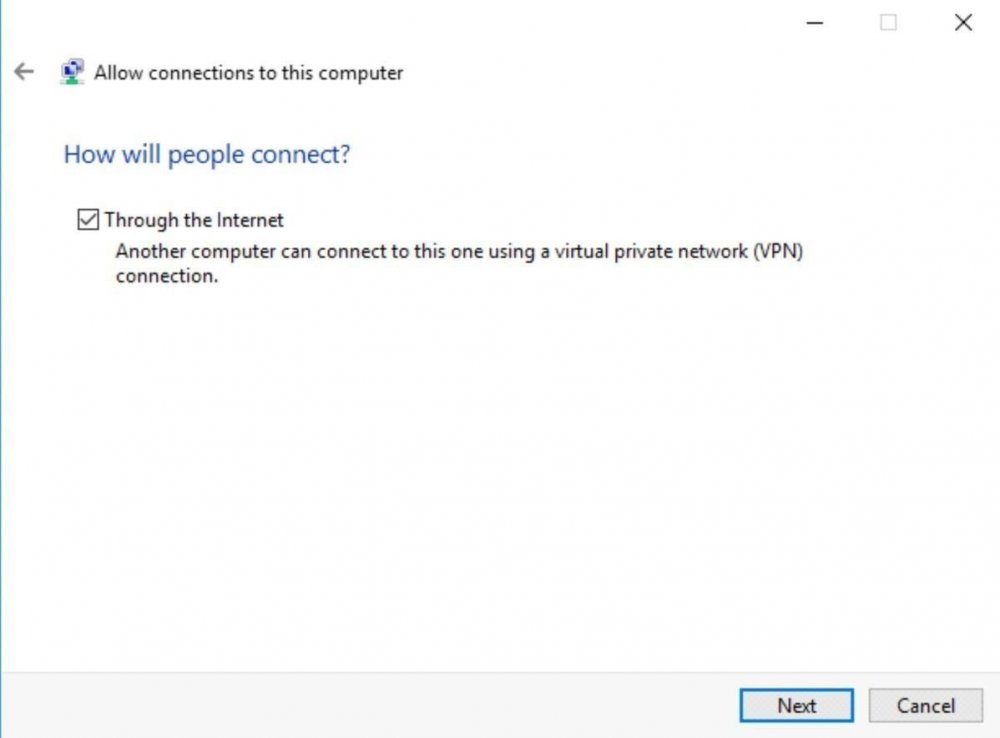

  • Tick “Through the Internet”.
  • Then click Next.


  • Select "Internet Protocol Version 4" (Already selected by default, make sure it is ticked
  • Then select properties


  • Make sure “Network Access” is ticked.
  • Under “IP address assignment” tick “Specifiy IP Addresses”
  • Use your Default Gateway from earlier, to create a proper IP-Address range for “Specify IP addresses”
    For example: if gateway is 192.168.0.1 – use 192.168.0.50 to 192.168.0.55 for the ip range. – Then select “OK”
    Or use: 192.168.0.150 to 192.168.0.155, or try 192.168.0.170 to 192.168.0.175
  • First three sectors (x.x.x.x format) must match gateway.


  • Select OK then Allow Access






ON GAMING-PC

2.1. Press Windows + X

  • Select "Network Connections"



2.2. Go to “VPN” on left side

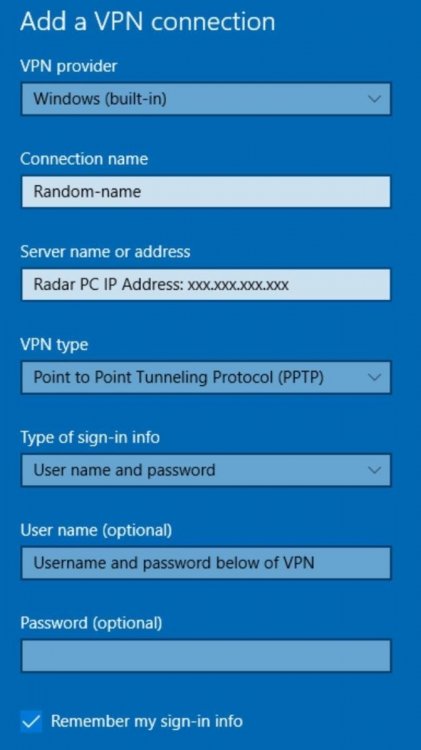

2.3. Click “Add a VPN Connection” on the top

  • VPN Provider: Windows (built-in)
  • Connection name: Whatever you want to use
  • Server name or address: Insert the IPv4 address from ipconfig of the Radar-PC
  • VPN type: PPTP
  • User name: User you made on incoming connections on Radar-PC
  • Password: Password you made on incoming connections on Radar-PC


  • Click Save.

2.4. Click the Connection Icon on the right side of your Taskbar and connect to your vpn.




You are done with the Windows-VPN setup.



If you have any questions or get stuck somewhere in the guide feel free to open a ticket or ask in a support channel on the Discord!




If you have any ideas or improvements for the guide feel free to message PaXe#1111 on Discord or leave a comment under this guide



It's always nice to see some feedback
so don't be shy and let us know what you think!
