DMA Card [Hardware]


Information:

Version:

- Emulated

Store:

- https://enigma-x1.com/



Guide & Download:

DMA Card





Setup DMA

Setup DMA

STEP 1: PREPARE YOUR PC

Click for Video



1. Install DMA Card in the Gaming-PC

  • Turn off the Gaming-PC and plug the DMA-Card in
    -> When installing/uninstalling the DMA Card you should always completely power off the PC

  • Insert USB cable into the DMA Data Port
    -> Use a USB 3.0 or faster cable for optimal speeds

  • Insert the other side into a USB port on the Second-PC SuperSpeed.webp USB20gbs.webp USB40gbs.webp



STEP 2: PREPARE YOUR BIOS

1. Power on the Gaming-PC and change the following BIOS settings on the Gaming-PC

  • On Intel CPU disable VT-d
  • On AMD CPU disable IOMMU

2. Save and exit from BIOS and continue to Windows
-> If you get stuck on windows login you need to flash your DMA Hardware first



STEP 3: PREPARE YOUR WINDOWS

1. Type "PowerShell" on the start menu on the Gaming-PC

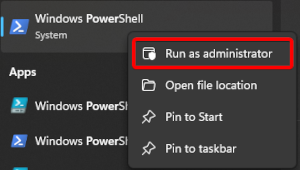

  • Open PowerShell with administrator privileges
  • Type the following:
REG ADD "HKLM\SYSTEM\CurrentControlSet\Control\Session Manager\Power" /V HiberbootEnabled /T REG_dWORD /D 0 /F
  • Press "Enter" and you should get the following message:
Disable-MMAgent -mc
  • Press "Enter" and you should get this:
  • If you're seeing this message, it means that memory compression is already disabled and everything is working as expected.



2. Restart your Gaming-PC



STEP 4: DONE

Make sure that your DMA Card has  firmware that supported the game you want to play.

Testing DMA

Testing DMA

STEP 1: PREPARE THE SECOND-PC

1. Disable Windows Defender



2. Uninstall all other Anti-Virus programs (BitDefender, MalwareBytes, etc.)



3. downloadArrowGreen.webpDownload the Loader



4. Run the Loader

  • Login with your clutch-solution username and password
  • This will generate the Loader_username and open it



STEP 2: START THE TOOL

1. Select "DMA Tool"

49B1561E0BA80C08


2. Click the 41F0F2E745A3B66 button

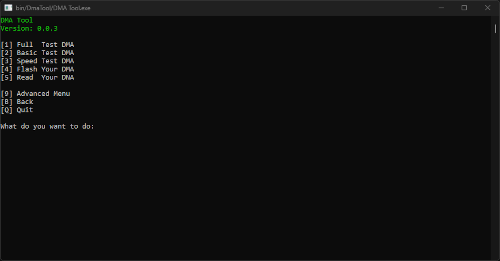

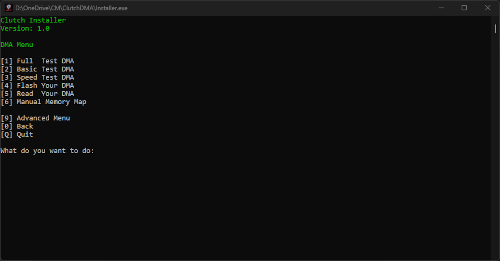

3. Type "1" and press Enter to "Start Full Test DMA"

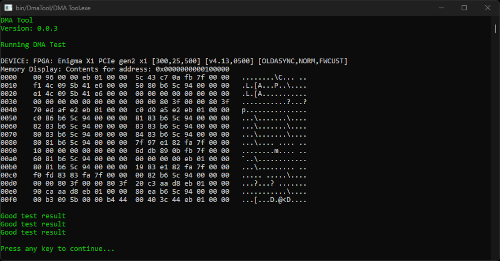

  • If you get "Good test result" just press any key to start speed test
    -> If you do not get "Good test result" follow the instructions shown in the program
    -> If necessary, check the troubleshooting.

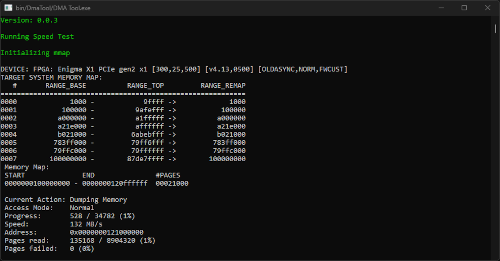

  • Once the "Progress" shows (100%) check the results below
    ~130-220MB/s -> Good Speed
    ~35-130MB/s -> You are most likely on a USB 2.0 port or cable
    -> Recommended to use a USB 3.0 10gbit/s cable or better
    ~8-32MB/s -> Tiny Speed
    -> This means that your DMA will work at reduced speeds, most likely because of your firmware



STEP 3: DONE

Flashing DMA

Flashing DMA

You do not need to do this if your DMA card already has a firmware update.



STEP 1: PREPARE THE SECOND-PC

1. Disable Windows Defender



2. Uninstall all other Anti-Virus programs (BitDefender, MalwareBytes, etc.)



3. downloadArrowGreen.webpDownload the Loader



4. Run the Loader

  • Login with your clutch-solution username and password
  • This will generate the Loader_username and open it



STEP 2: START THE TOOL

1. Select "DMA Tool"

49B1561E0BA80C08


2. Click the 41F0F2E745A3B66 button


3. Type "4" and press Enter to start flashing your DMA

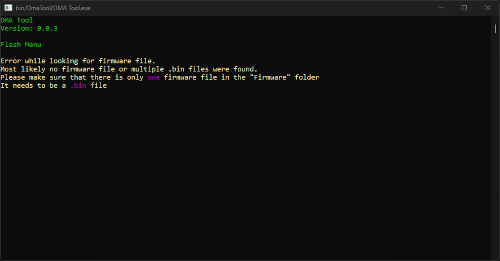

  • If this message appears, the folder where you should place your firmware.bin file will automatically opendmasetup_missingbin.webp

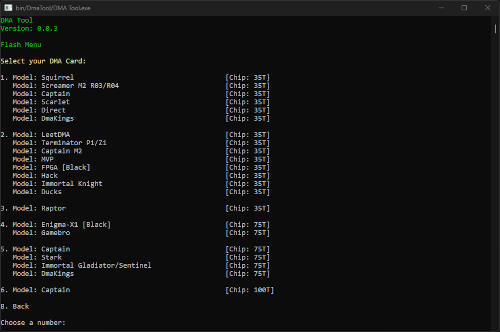

4. Select your DMA model and follow the instructions

-> For example, if you have a LeetDMA, select #2 and press Enter

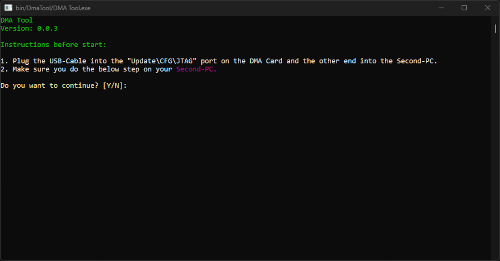

5. Read the instructions carefully



6. Type "Y" and press "Enter" to continue

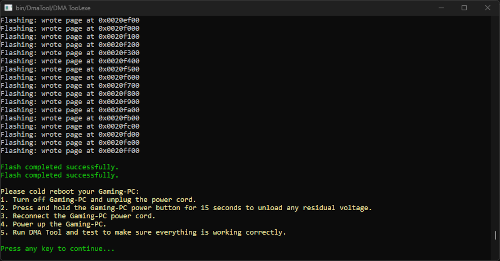

  • If everything is correct you should see a screen similar to this
    -> You might get a different amount of sectors, just make sure that none are missing in between.


STEP 2: DONE

Continue with testing dma.





HDMI-Fuser [Hardware]


Information:

Version:

- Last one

Store:

- https://enigma-x1.com/



Guide & Download:

HDMI-Fuser





About Fuser

About Your Fuser

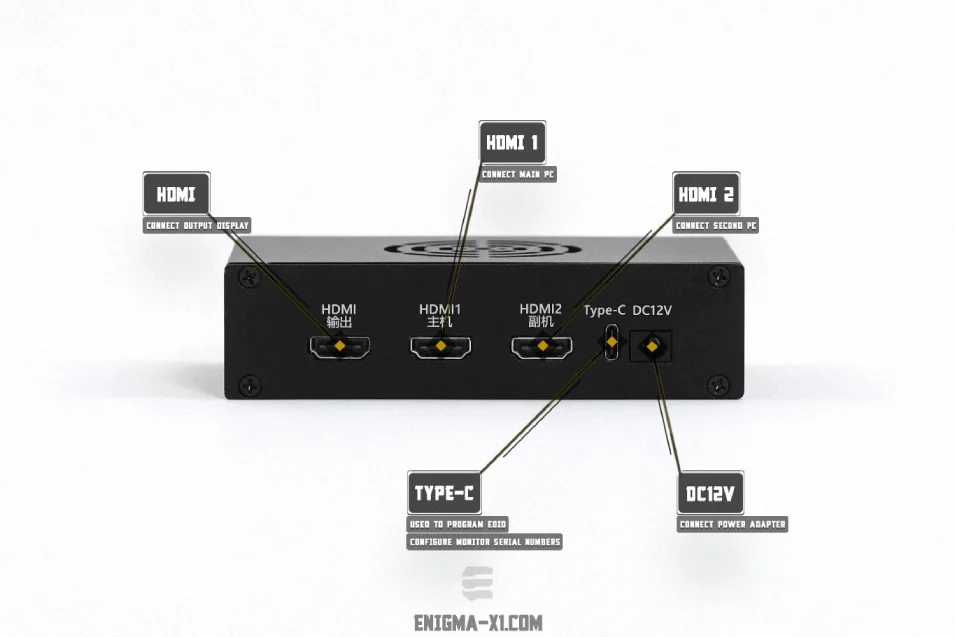

INTERFACE

  • [HDMI Output]: Connect to the Main Display (the main screen for playing games)
  • [HDMI1]: Connect to the Gaming-PC graphics card (the computer for playing games)
  • [HDMI2]: Connect to the Second-PC graphics card
  • [Type-C]: Flash program and inject EDID
  • [DC12V]: Power supply (default 12V 2A)

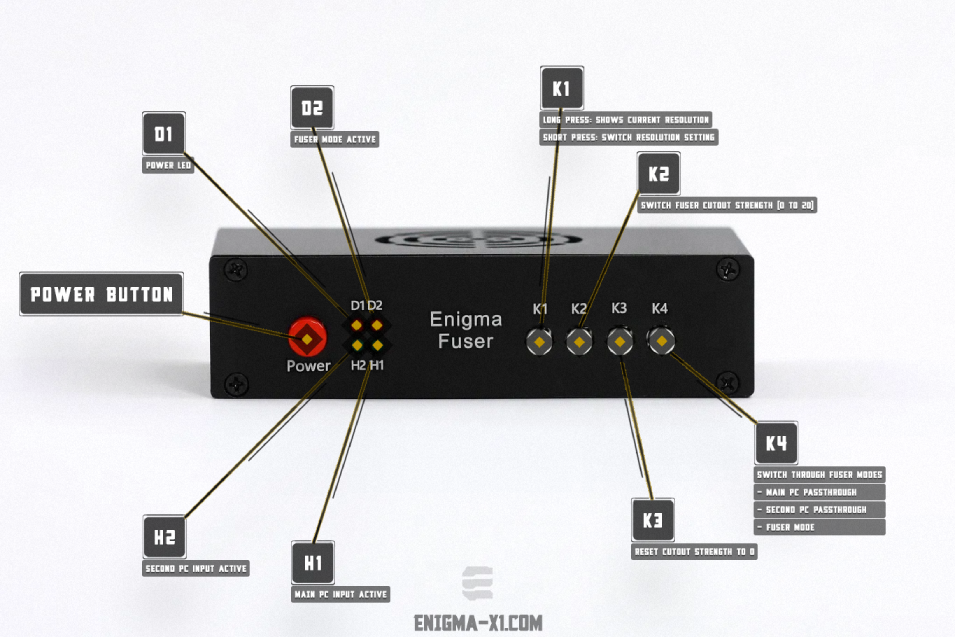

INDICATORS

  • [D1]: Power light (Normal when turned on.).
  • [D2]: Fusion function on/off indicator (On when turned fuser turned on)
  • [H1]: HDMI1 Gaming-PC input signal light (Normal when turned on)
  • [H2]: HDMI2 Second-PC input signal light (Normal when turned on)

BUTTON FUNCTIONS

  • [Power]: Power switch.
  • [K1]: Short press: Cycle through the resolutions, 1920*1080@240hz, 2560*1440@144hz, 2560*1080@144hz, 3840*2160@60hz,, 3440*1440@60hz, Default: 1920*1080@240hz
    • Press and hold for three seconds (press and hold until displayed): The current resolution and refresh rate are displayed in the upper left corner of the screen, the upper part is the Gaming-PC information, and the lower part is the Second-PC information
  • [K2]: Short press: Cycle through the upper layer cutout intensity, 0-20 levels, a total of 21 levels, factory default 0 (0 also cuts out)
  • [K3]: Short press: Restore the upper layer cutout intensity to the factory default 0
  • [K4]: Short press: Turn on/off the fusion function
Setup Fuser

Setup Fuser

STEP 1: SET UP YOUR FUSER
  • [HDMI Output]: Connect to the Main Display
  • [HDMI1]: Connect to the Gaming-PC graphics card
  • [HDMI2]: Connect to the Second-PC graphics card
  • [DC12V]: Plug it into an outlet

STEP 2: SET UP DISPLAY SETTING ON WINDOWS

1. On the Gaming-PC change windows display settings:

  • Change the hertz to the maximum that the fuser/main monitor supports

2. On the Second-PC change windows display settings:

  • Extended Display (Recommended)
  • Change the hertz to the maximum that the fuser/main monitor supports

STEP 3: SETUP DONE

You are ready

Flashing Fuser

Flashing Fuser

STEP 1: PREPARE YOUR SYSTEM

1. Plug in your usb-c cable into the Type-c port on your fuser, and plug the other end into your Second-PC



STEP 2: DOWNLOAD AND INSTALL
1. downloadArrowGreen.webpDownload the USB Driver on the Second-PC

  • Run it
  • Click Install

2. downloadArrowGreen.webpDownload Monitor Asset Manager on the Second-PC

  • Run It
  • Click Install

3. downloadArrowGreen.webpDownload Injector on the Second-PC

  • Run It

STEP 3: EXTRACTING EDID FROM MAIN MONITOR

1. Connect the monitor you want to extract the EDID from to your Second-PC

  • Attention the monitor must be connected via HDMI cable and NOT display port

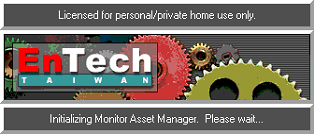

2.  Open MonInfo.exe on the Second-PC

Start_MonInfo.webp -> MoInfo.webp

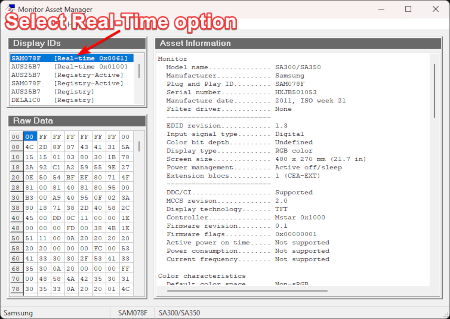

3. Select the monitor from which the EDID will be extracted

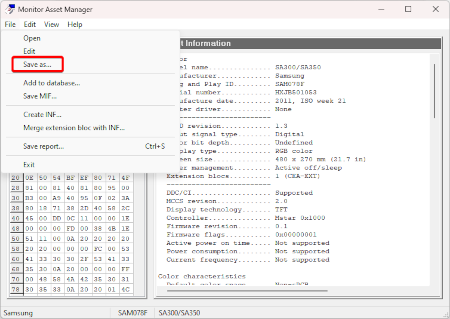

4. Go to "File" -> "Save as..."




5. Save the dspinfo.bin to your desktop




STEP 4: INJECTING EDID INTO YOUR FUSER

1. Open Injector.exe


  • 1. Select UART COM
  • 2. Select which profile (Screen Size) you want flash-> Default is 1920x1080
  • 3. Click on "Load Config"
  • 4. Click on "Select config" and select your "dspinfo.bin" that you saved on your desktop in Step 3.5
  • 5. Click on "Inject Config" and wait for the process to complete. The screen may go black during injection. Once the injection is successful, a prompt will appear

2. After a successful injection, disconnect the Type-C cable

  • A popup like this means success



STEP 5: FLASH DONE





DisplayPort-Fuser [Hardware]


Information:

Version:

- Last one

Store:

- https://enigma-x1.com/



Guide & Download:

DisplayPort-Fuser





About Fuser

About Your Fuser

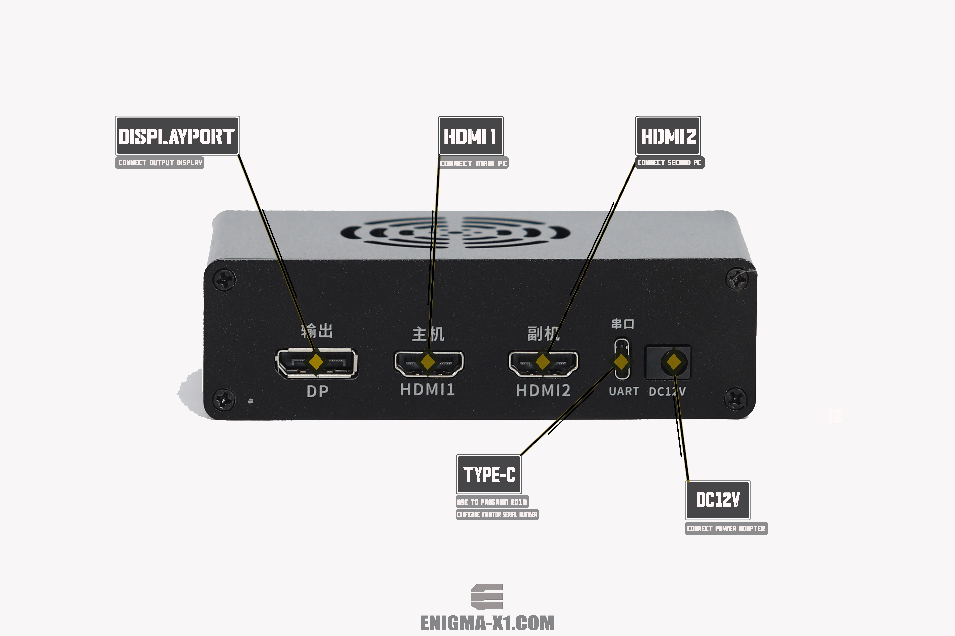

INTERFACE

  • [DP]: Connect to the Main Display (the main screen for playing games)
  • [HDMI1]: Connect to the Gaming-PC graphics card (the computer for playing games)
  • [HDMI2]: Connect to the Second-PC graphics card
  • [Type-C]: Flash program and inject EDID
  • [DC12V]: Power supply (default 12V 2A)

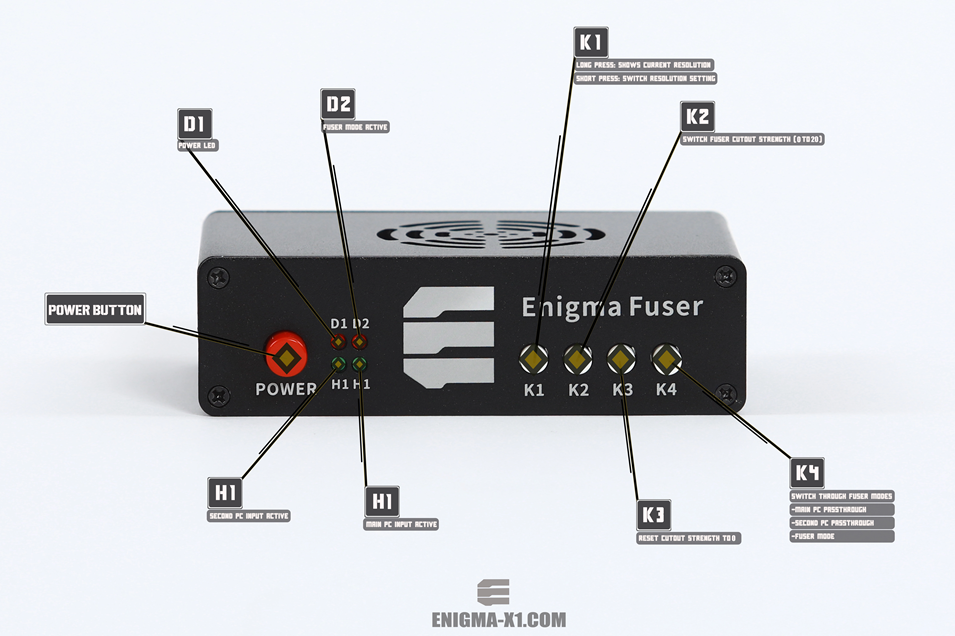

INDICATORS

  • [D1]: Power light (Normal when turned on.).
  • [D2]: Fusion function on/off indicator (On when turned fuser turned on)
  • [H1]: HDMI1 Gaming-PC input signal light (Normal when turned on)
  • [H2]: HDMI2 Second-PC input signal light (Normal when turned on)

BUTTON FUNCTIONS

  • [Power]: Power switch.
  • [K1]: Short press: Cycle through the resolutions, 1920*1080@240hz, 2560*1440@144hz, 2560*1080@144hz, 3840*2160@60hz,, 3440*1440@60hz, Default: 1920*1080@240hz
    • Press and hold for three seconds (press and hold until displayed): The current resolution and refresh rate are displayed in the upper left corner of the screen, the upper part is the Gaming-PC information, and the lower part is the Second-PC information
  • [K2]: Short press: Cycle through the upper layer cutout intensity, 0-20 levels, a total of 21 levels, factory default 0 (0 also cuts out)
  • [K3]: Short press: Restore the upper layer cutout intensity to the factory default 0
  • [K4]: Short press: Turn on/off the fusion function
Setup Fuser

Setup Fuser

STEP 1: SET UP YOUR FUSER
  • [DP]: Connect to the Main Display
  • [HDMI1]: Connect to the Gaming-PC graphics card
  • [HDMI2]: Connect to the Second-PC graphics card
  • [DC12V]: Plug it into an outlet

STEP 2: SET UP DISPLAY SETTING ON WINDOWS

1. On the Gaming-PC change windows display settings:

  • Change the hertz to the maximum that the fuser/main monitor supports

2. On the Second-PC change windows display settings:

  • Extended Display (Recommended)
  • Change the hertz to the maximum that the fuser/main monitor supports

STEP 3: SETUP DONE

You are ready

Flashing Fuser

Flashing Fuser

STEP 1: PREPARE YOUR SYSTEM

1. Plug in your usb-c cable into the Type-c port on your fuser, and plug the other end into your Second-PC



STEP 2: DOWNLOAD AND INSTALL
1. downloadArrowGreen.webpDownload the USB Driver on the Second-PC

  • Run it
  • Click Install

2. downloadArrowGreen.webpDownload Monitor Asset Manager on the Second-PC

  • Run It
  • Click Install

3. downloadArrowGreen.webpDownload FlashTool on the Second-PC

  • Run It

STEP 3: EXTRACTING EDID FROM MAIN MONITOR

1. Connect the monitor you want to extract the EDID from to your Second-PC

  • Attention the monitor must be connected via HDMI cable and NOT display port

2.  Open MonInfo.exe on the Second-PC

Start_MonInfo.webp -> MoInfo.webp



3. Select the monitor from which the EDID will be extracted

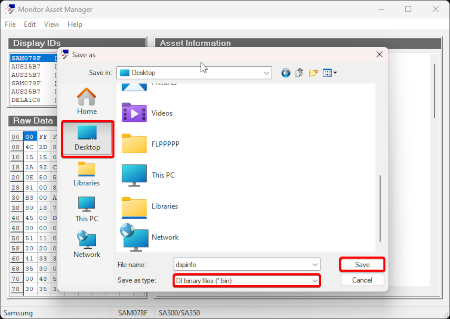

4. Go to "File" -> "Save as..."




5. Save the dspinfo.bin to your desktop




STEP 4: FLASHING EDID INTO YOUR FUSER

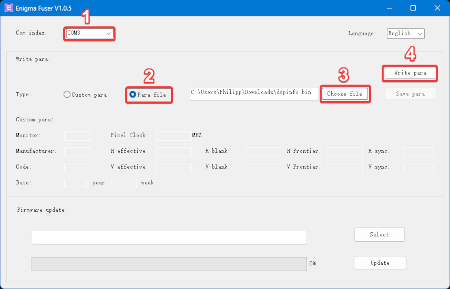

1. Open EnigmaDPFuserFlashTool.exe


  • 1. Select COM INDEX
  • 2. Click on "Para file"
  • 4. Click on "Choose file" and select your "dspinfo.bin" that you saved on your desktop in Step 3.5
  • 5. Click on "Write para" and wait for the process to complete. The screen may go black during injection. Once the injection is successful, a prompt will appear

2. After a successful injection, disconnect the Type-C cable

  • A popup like this means success



STEP 5: FLASH DONE





KmBox Net [Hardware]


Information:

Version:

- Last one

Store:

- https://enigma-x1.com/



Guide & Download:

KmBox Net





Setup KmBox Net

SETUP

STEP 1: DOWNLOAD AND INSTALL

1. downloadArrowGreen.webpDownload: Drivers on the Second-PC

  • Run it
  • Click Install

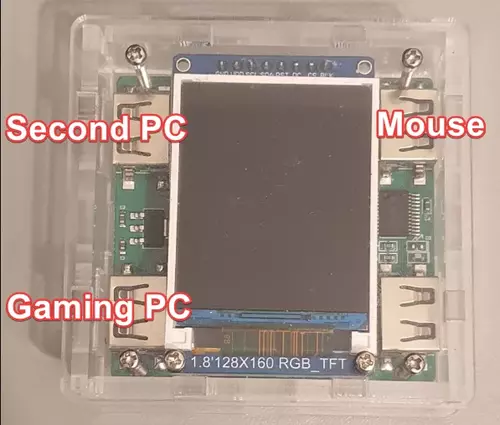

2. Connect your USB-Cables following this picture



STEP 2: SET UP YOUR KMBOX

1. Type ncpa.cpl on start menu

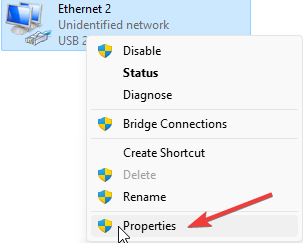

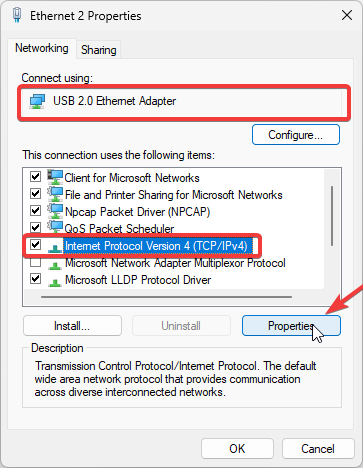

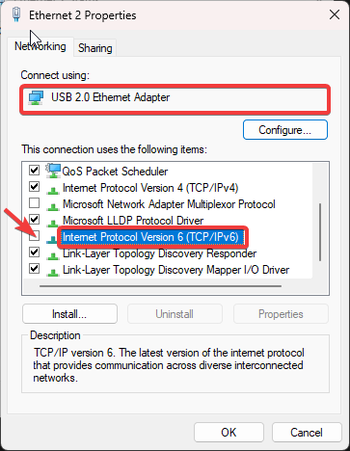

2. Right click on "USB 2.0 Ethernet Adapter" then click on Properties




3. Select IPv6 then uncheck the checkbox

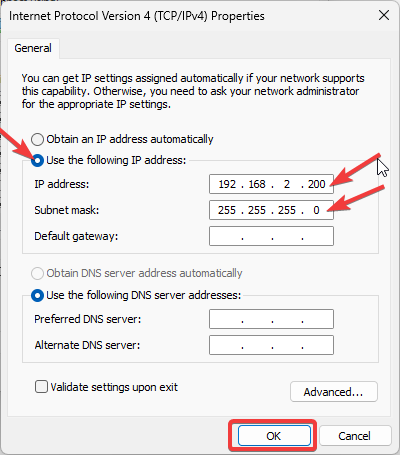

4. Select IPv4 then click on Properties




5. Select "Use the follwing IP address"

  • Enter the IP that is displayed on your kmbox and increase it by one.

-> Example: KMBox displays: 192.168.2.188 -> You write 192.168.2.189

  • Type Subnet mask: 255.255.255.0
  • Press OK




STEP 3: DONE

Flashing KmBox Net

FLASHING

STEP 1: DOWNLOAD AND INSTALL

1.  downloadArrowGreen.webpDownload: Flash Drivers on the Second-PC

  • Run it
  • Click Install

2.  downloadArrowGreen.webpDownload: Lasted firmware on the Second-PC

  • Remove "???" from the file name
  • Save it

3.  downloadArrowGreen.webpDownload: Flashtool on the Second-PC

  • Run it

STEP 2: START FLASHING PROCESS

1. Connect both USB cables into the Second PC



2. Unplug all USB from your kmbox

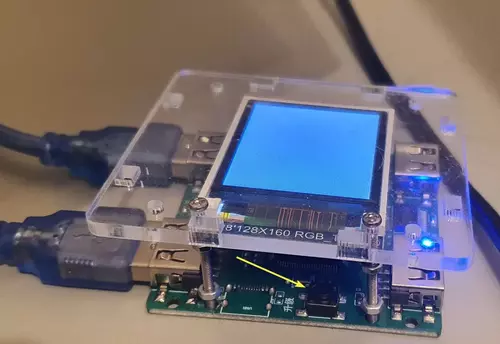

3. Hold down the tiny black button inside the case




4. Plug in USB at the same time to power it up.

  • If screen goes white and the blue LED flashes fast, you're now in "Update Mode"

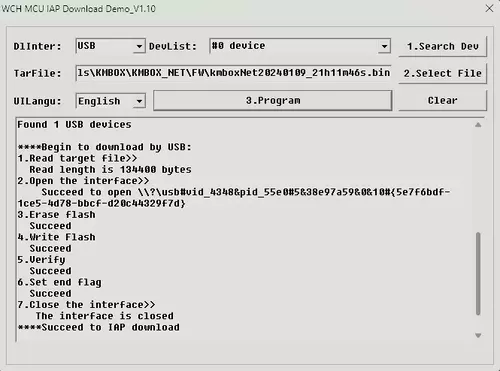

5. Open the flash tool from step 3

  • Select the USB device in the "DevList"
  • Click "Select File", change file type to "*.bin" and select the .bin file from step 1.2

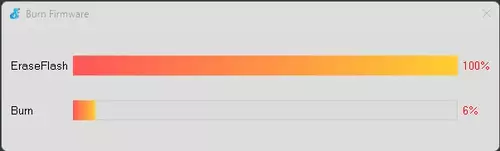

  • Click "Program"




STEP 3: DONE

After the process is done your kmbox will restart automatically and display the new firmware version





KmBox B+ Pro [Hardware]


Information:

Version:

- Last one

Store:

- https://enigma-x1.com/



Guide & Download:

KmBox B+ Pro





Setup KmBox B+ Pro

SETUP

STEP 1: DOWNLOAD AND INSTALL

1.  downloadArrowGreen.webpDownload Drivers on the Second-PC

  • Run it
  • Click Install

2. Connect your USB-Cables following this picture




STEP 2: DONE

Flashing KmBox B+ Pro

FLASHING

STEP 1: SET UP YOUR KMBOX

1. Connect your USB-Cables following this picture




2. Check the Firmware version

-> 20240130 - 30th January 2024




3. If the firmware version is from before August 2023 (08.2023) then DO NOT FLASH it will permanantly break the device
-> Sometimes your seller can help with this

-> If you have "activate it" message follow this guide



STEP 2: DOWNLOAD AND INSTALL

1. downloadArrowGreen.webpDownload Drivers on the Second-PC

  • Run it
  • Click Install

2. downloadArrowGreen.webpDownload Lasted firmware on the Second-PC

  • Remove "???" from the file name
  • Save it

3. downloadArrowGreen.webpDownload Flashtool on the Second-PC

  • Run it

STEP 3: START FLASHING PROCESS

1. Click OK




2. Open device manager and check the COM Port




3. Go to Tools -> Serial -> Select your COM port




4. Go to Tools -> BurnFirmware


5. On update Firmware select the following values:

  • board: esp32
  • burn_addr: 0x1000
  • erase_flash: yes
  • com: COM# from step 2

-> Select "Users" and click "choose" to select the .bin file you downloaded




6. Click "ok" and wait for Burn to finish




STEP 4: DONE

After the process is done your kmbox will restart automatically and display the new firmware version

Changing Freq KmBox B+ Pro

CHANGING FREQ

STEP 1: PREPARE YOUR SYSTEM

1. Connect your USB-Cables following this picture




STEP 2: DOWNLOAD AND INSTALL [SECOND-PC]

1. downloadArrowGreen.webpDownload Drivers on the Second-PC

  • Run it
  • Click Install

2. downloadArrowGreen.webpDownload Flashtool on the Second-PC

  • Run it

STEP 3: START PROCESS

1. Click OK




2. Open device manager and check the COM Port




3. Go to Tools -> Serial -> Select your COM port




4. Type "km.freq()" and press enter


-> If you receive the message saying that it is configured at 500, you need to continue following this guide to change, if your kmbox is already configured at 1000, you can ignore it.



5. Go to "device" -> double click on "boot.py"




6. Search for "km.freq(500)" -> change to "km.freq(1000)"




7. Go to Tools -> "DownloadAndRun (F5)"


-> You need to receive a message similar to this


8. Type "km.freq()" and press enter


-> You need to receive the message saying that it is set to "1000"



9. Type "km.reboot()" and press enter


10. After the process is done your kmbox will restart automatically


-> You need to receive a message similar to this.



STEP 4: DONE

Guest
Topic closed
 Share
Go to topic listing

General:

Cheats
Videos
Reviews
Trustpilot

Partner:

Clutch Paypal Store
Cheat Hardware - DMA Card Store
VPS Provider
Elitepvpers Blog

About us:

You want the best cheat experience?
Clutch-Solution.com is your trusted seller for pc multiplayer game Aimbots, Trigger, NoRecoil, ESP and Radars. Our developers are known for secure external cheats and hacks. Start winning more matches and get the kills you truly deserve now.
×
×
  • Create New...

Important Information

We use cookies on our website, without which the operation of our website is not possible. In addition, we use cookies to offer functions such as playing videos via Youtube. Your click on "Agree" allows us to process data as well as transfer data to third party providers in third countries in accordance with our Privacy Policy. Please read and accept our Terms of Use and and Guidelines. We have placed cookies on your device to help make this website better. You can adjust your cookie settings, otherwise we'll assume you're okay to continue. The cookies can be rejected at any time or adjusted in the settings.
